Heat Pump
Combined Operation
The chiller operates simultaneously as a boiler and a refrigeration unit. Depending on the external temperature conditions and customer-set priority requests, the control system adjusts the production quantities of heating and cooling.
Footprint size
We have designed a compact chiller that can be easily disassembled and transported into existing buildings, even through elevators or small doors.
Energy Savings
Recumatik is a green chiller. This means it is capable of reducing operating costs and decreasing CO₂ emissions compared to fossil fuels.
Description
High efficiency, environmentally friendly, reliable, durable, and easy to maintain. Thanks to our expertise in ammonia technology, we have managed to create a machine that is extremely efficient and sustainable at the same time.
Ammonia, in fact, allows us to ensure the highest possible efficiency as well as a substantial reduction in emissions.

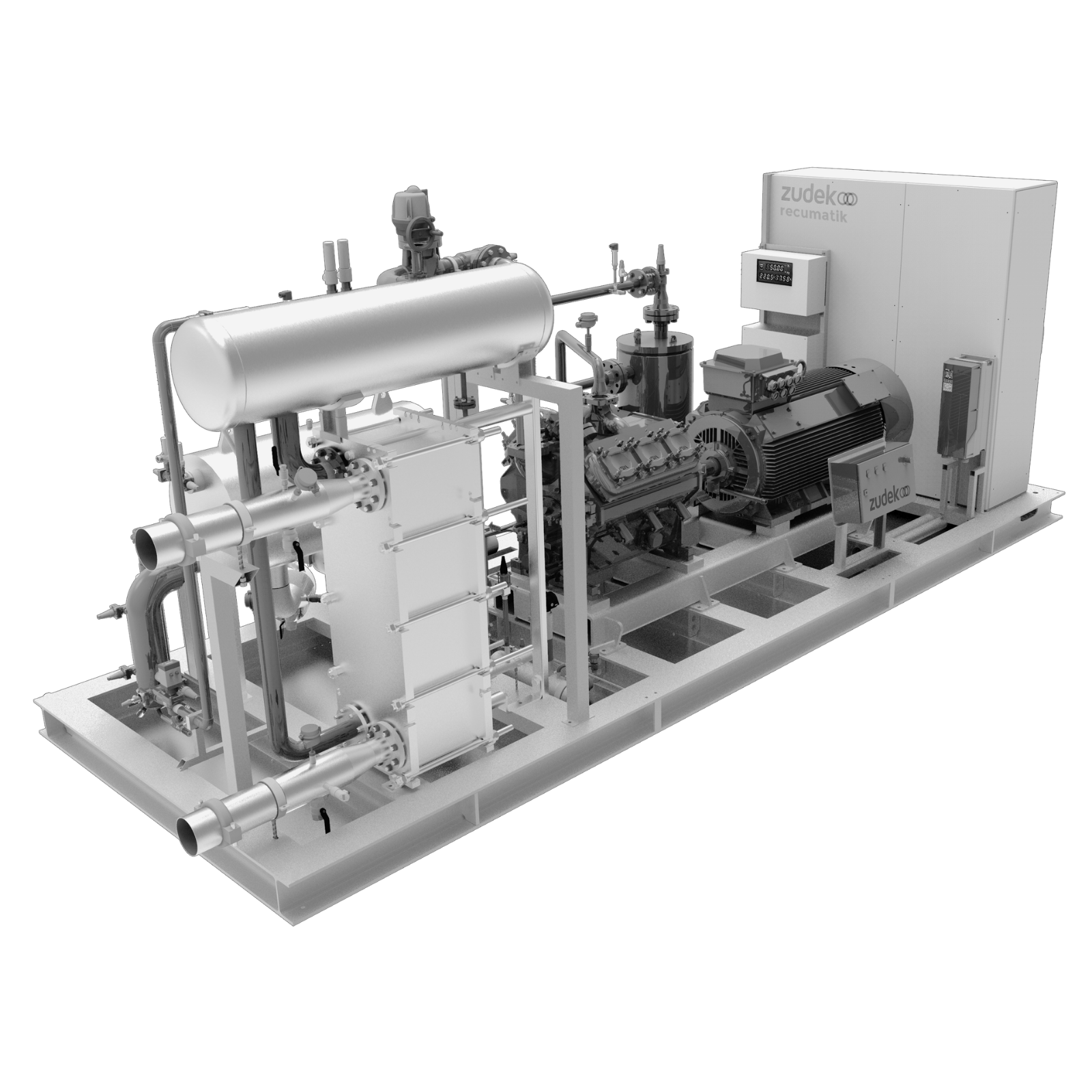

Recumatik is a high-temperature heat pump that can be used for both heating and cooling. In fact, it can operate simultaneously as a boiler and a refrigeration unit. Depending on customer priority requests, the control system adjusts the production quantities of heating and cooling. Specifically, with Recumatik, it is possible to use hot water at various temperature levels up to +90°C.
Features
General Features
- Temperature Range: from +90°C to -45°C
- Power: up to 3000 kW
- Compact size and easy to transport
- Heating water at various temperature levels
- PED 97/23/CE certification and testing according to ISO 9001:2008
Options and Accessories
- Motors and inverters available with IE4 efficiency
- Available with piston or screw compressors
- Available with modular sections
- Ultra-efficient versions with subcooler and superheater
- New soundproof cabin with integrated ammonia safety devices
- Available in versions with ammonia charge below 75 kg
- ATEX versions
Strengths
Eco-friendly
Our heat pumps use exclusively ammonia as the refrigerant fluid. This allows us to minimize CO2 emissions generated by the machine.
Energy Savings
Recumatik, thanks to the use of ammonia, allows us to significantly reduce operating costs compared to heat pumps that use synthetic refrigerants.
Geothermal
Our heat pumps are designed to harness the heat from the underground, using it as an inexhaustible and constant temperature energy source.
Combined Operation
Recumatik can operate simultaneously as a boiler and a refrigeration unit. Depending on the external temperature conditions and customer-set priority requests, the control system adjusts the production quantities of heating and cooling.
Certifications
If necessary, all chillers can be designed and built in ATEX versions and be provided with PED 97/23/CE certification and testing according to ISO 9001:2008.
24/7 Monitoring
Thanks to our Telematik system, we are able to remotely monitor the machine to analyze its proper functioning and intervene promptly.
Zeromatik
Zeromatik is Zudek's accessory that allows any of our chillers to produce cold water consistently. The system optimally utilizes plate heat exchangers, where water is cooled to a temperature close to freezing. This is possible thanks to precise and controlled management of ammonia evaporation.
The Zeromatik system for cold water production can be installed in all Zudek solutions, including water-cooled systems, air-cooled systems, and water and ammonia absorption chillers.
Many dairy industry companies, where cold water is a critical element in the production process, have already installed this system.
But they are not the only ones! In fact, Zeromatik is the best solution for effectively managing various types of processes, such as vegetable cooling, carbonated beverage bottling, and activities in wineries.
Strengths
Efficient
Zeromatik allows you to replace the ice storage tanks typically used for cold water production. This results in significant energy and operational cost savings.
Compact
Zeromatik is small in size, making it easy to integrate into existing systems
Versatile
Zeromatik is available for both water-cooled and air-cooled compression chillers, as well as absorption chillers. Moreover, it can be easily integrated into existing ammonia refrigeration systems.
Consistent
Zeromatik enables the production of chilled water at a constant temperature without interruptions. This system allows for continuous operation at the same temperature 24 hours a day.
Reliable
Custom-sized for the customer and thanks to Zudek's control logic, there is no risk of freezing.
